توضیحات

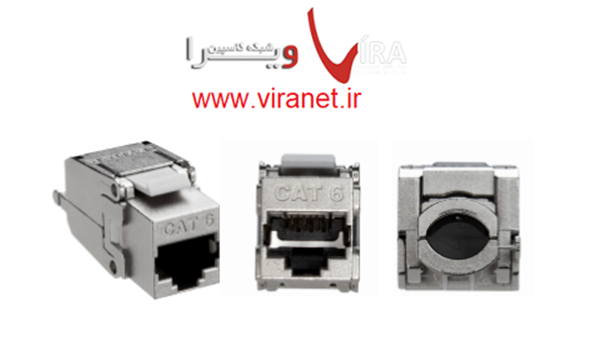

کيستون Cat6A SFTP لويتون که در اصطلاح آنرا کيستون 10G بخاطر پهناي باند آن نيز مي نامند داراي پوشش فلزي براي جلوگيري از نفوذ امواج الکترومغناطيس در محيطهاي نويزي مي باشد . از اين کيستون لويتون در پريزهاي شبکه بصورت روکار و توکار استفاده مي شود . لازم بذکر است تمامي تجهيزات مسي لويتون داراي استانداردهاي بين المللي و فلوک پاس مي باشد .
APPLICATION
Leviton CAT 6A Shielded Connectors meet all TIA/EIA CAT 6A and ISO/IEC 11801 Class Ea performance requirements for internal and Alien Crosstalk parameters up to 500 MHz. The connector provides superior Alien Crosstalk suppression and protects critical data from EMI (electromagnetic interference) and RFI (radio frequency interference). This makes it part of a complete CAT 6A shielded system ideal for use in healthcare, manufacturing, casinos and other environments where EMI/RFI may be a concern. Leviton’s Shielded Solution is Rockwell Automation Encompass™ Approved.
SPECIFICATION
CAT 6A shielded connector shall provide electrical TIA-568-C.2 (Augmented CAT 6) performance for all internal and alien crosstalk parameters up to 500 MHz. The connector shall be encased in a die-cast housing with a wide angle, hinged design that allows easy access for termination. The connector shall allow termination without a 110 punch down tool. The connector shall include T568A and T568B universal color codes
FEATURES
•Mitigates Alien Crosstalk with industry standard density
•Shielding provides EMI/RFI protection and data security
• Connector features robust die-cast housing
• Unique design requires no punch-down tool
•Connector incorporates a wide-angle, hinged design for easy access / termination
•Rockwell Automation Encompass™approved
DESIGN CONSIDERATIONS
•Can be used to terminate all types of shielded cable
•Use flush cut trimmers to remove exposed conductors prior to termination
•In a QuickPort wallplate , connector should be mounted horizontally (side-by-side)
•When installed vertically in a QuickPort wallplate, product dimensions necessitate a blank space between connectors
•Leviton Wallplates for Large Connectors are ideal for shielded connectors
•Utilize tie wrap (included) to ensure contact between drain wire and shield to connector
STANDARDS COMPLIANCE
Connector is part of a complete Cat 6A shielded solution that meets all
•TIA-568-C.2 Cat 6A •ISO/IEC 11801 Class Ea •IEEE 802.3an 10GBASE-T •FCC Part 68 •Intertek (ETL) 3rd-party verification
WARRANTY INFORMATION For a copy of Leviton product warranties, visit www.leviton.com
