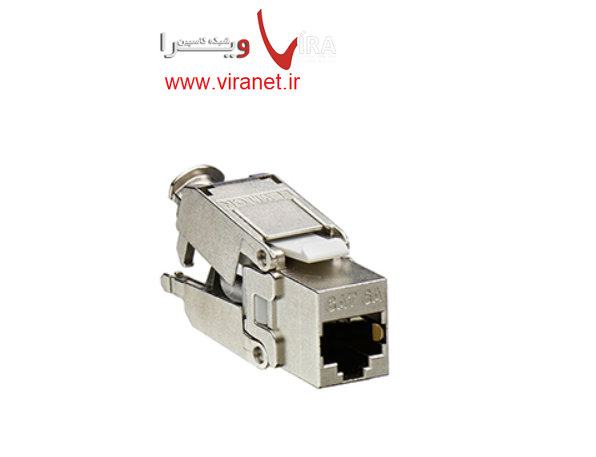

کيستون Cat6A SFTP لويتون با پارت نامبر ASHD-S6Aکه در اصطلاح آنرا کيستون شيلدد 10G بخاطر پهناي باند آن نيز مي نامند داراي پوشش فلزي براي جلوگيري از نفوذ امواج الکترومغناطيس در محيطهاي نويزي مي باشد . از اين کيستون لويتون در پريزهاي شبکه بصورت روکار و توکار استفاده مي شود . لازم بذکر است تمامي تجهيزات مسي لويتون داراي استانداردهاي بين المللي و فلوک پاس مي باشد .
ITEM DESCRIPTION
Cat 6A High-Density Shielded QuickPort Connector
BRAND FEATURES
Cat 6A shielded products are designed to support all 10GBASE-T networks. Cat 6A shielded connectors meet ANSI/TIA-568-C.2 (Cat 6A) and ISO/IEC 11801 (Class EA) requirements for all internal and Alien Crosstalk parameters up to 500 MHz. The shielded connector provides superior alien crosstalk suppression and protects critical data from potential EMI/RFI (electromagnetic interference/radio frequency interference). The connector is part of a complete Cat 6A shielded system ideal for government, healthcare, manufacturing, transportation, gaming, and other environments where EMI/RFI may be a concern.
SPECIFICATION
CAT 6A shielded connector shall provide electrical TIA-568-C.2 (Augmented CAT 6) and ISO/IEC 11801 (Class EA) performance for all internal and alien crosstalk parameters up to 500 MHz. Up to six connectors shall be able to fit in a single-gang faceplate for high density applications. The connector shall be encased in a diecast housing with a wide angle, hinged design that allows easy access for termination. The connector shall allow termination without a 110 punch down tool. The connector shall include T568A and T568B universal color codes.
FEATURES
UPC Code: 07847756589
Country Of Origin: Taiwan
- Backwards compatible to support Cat 6 and Cat 5e performance
- Provides seamless migration from 1000BASE-T to 10GBASE-T network performance
- Shielding provides EMI/RFI protection, signal isolation, and excellent alien crosstalk (AXT) suppression
- Connector features robust die-cast housing
- Unique design requires no punch-down tool
- Connector incorporates a wide-angle, hinged design for easy access and termination
- Supports Cat 6A performance in short permanent link applications
DESIGN CONSIDERATIONS
• Can be used to terminate all types of shielded cable • Use flush cut trimmers to remove exposed conductors prior to termination • Fits most Leviton Quickport applications in patch panels, faceplates and surface mount boxes
STANDARDS COMPLIANCE
Connector is part of a complete CAT 6A shielded solution that meets the following standards: • TIA-568-C.0 • TIA-568-C.1 • TIA-568-C.2 CAT 6A • ISO 11801 Class Ea • IEEE 802.3an 10GBASE-T • IEEE 802.3af Power over Ethernet (PoE) • IEEE 802.3at Power over Ethernet Plus (PoE+) • FCC Part 68 • EN 50173
WARRANTY INFORMATION For a copy of Leviton product warranties, visit www.leviton.com.
