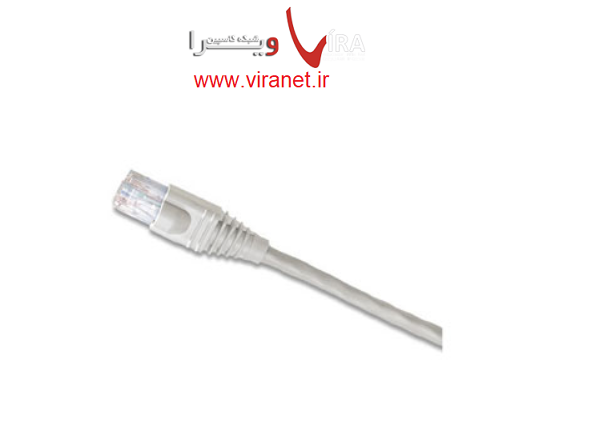

پچکورد Cat6 UTP لويتون با پارت نامبر 62460-3W سفيد رنگ بوده و طول آن تقريبا يک متر مي باشد چون در برند لويتون اندازه پچکوردها بر اساس فوت مي باشد و اندازه دقيق اين پچکورد 3 Foot معادل 0.91m مي باشد .
ITEM DESCRIPTION
eXtreme Cat 6 Standard Patch Cord, 3 ft, White
UPC Code: 07847713385
Country Of Origin: China
SPECIFICATION
Patch cords shall meet or exceed requirements for Cat 6 performance described in ANSI/TIA-568-C.2. Patch cords shall be stranded conductor with an 8-position modular plug on each end. The cords shall be available in standard lengths of 1, 3, 5, 7, 10, 15, and 20 feet. Patch cord plug shall be clear and contacts shall have industry-standard, ANSI/TIA-1096-A compliant 50 micro inches of gold plating.
FEATURES
• Stranded conductor for longer flex-life • T568B wiring to function in either T568A or T568B applications • Color-matched cords and boots
DESIGN CONSIDERATIONS
• ANSI/TIA channel performance limits the total length of work area and equipment room cords to 32 feet (10 meters) per ANSI/ TIA-568-C.2 or 88.6 feet (27 meters) in a MUTOA application • A variety of colors for color coding and organizing • Available in six standard lengths • Color-matched rubber boot provides protection for plug STANDARDS COMPLIANCE • ANSI/TIA-568-C.2 • ISO/IEC 11801-B • ANSI/TIA-1096-A • cULus Listed • UL 444 CM rated • Supports IEEE 802.3af, 802.3at, and Cisco UPoE up to 60 watts • Supports emerging PoE standards such as the draft IEEE 802.3bt, up to 100 watts; with bundle sizes of 100 cords or less
PERFORMANCE SPECIFICATIONS
Outer Diameter (O.D.): 0.225″ Materials: Plug body is high-impact, fire-retardant plastic rated UL 94V-0 Color: White, Grey, Black, Blue, Red, Yellow, Green (Matching color boots) COUNTRY OF ORIGIN China
WARRANTY INFORMATION
